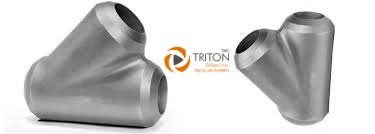

ANSI/ASMI B16.9 Buttweld Lateral cap Suppliers in India, Alloy20 Buttweld Lateral Cap Delar in Saudi Arabia, Stainless steel ASTM A403 304/304H buttweld Lateral cap Manufacturer in Mumbai, India.
Triton Alloys Inc manufacturer & exporter of ASME B 16.9 Buttweld Lateral Cap availbale in various forms and size, products like Elbows,Tee, Cross and educers etc.Buttweld fittings dimensions, dimensional tolerances are defined in the ASME B16.9 standards. Light-weight corrosion resistant fittings are made to MSS SP43.We also offer custom-made Buttweld Lateral Cap that have been widely appreciated by our clients.
ASME B 16.9 Buttweld Lateral Cap Pipe Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances,marking, testing, and methods of designating openings for fittings.
Specification :
| Type | Butt weld (BW) |
| Standards | ASME / ANSI – B 16.9 |
| ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ | |
| API 590-605 | |
| ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’ | |
| ASME B16.25 – ‘Buttwelding Ends’ | |
| ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ | |
| MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ | |
| Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Schedule | Sch 5 TO Sch XXS. |
| Size | 1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”) |
| Stainless Steel | ASTM A 403 WP - TP 304, H, L, 316, 309, 310, 317L, 321, 347, 904L |
| Duplex Steel | 2205, 31803, 32750, 32760, 2101, 2304 |
| Carbon Steel | ASTM A 234 WPB, A-420 WPL6. |
| Alloy Steel | ASTM A 234 WP - P5, P9, P11, P12, P21, P22 & P91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel , Inconel , Alloy 20 etc. |
| Test Certificate | MTC, IBR TC, Lab.TC from Govt. App. Lab. with Third Party Inspection. |
| Specialize | * Long Bend with Radius R=3D, 5D, 10D etc. |
Dimensions Buttweld Lateral Cap
| NPS | O.D. D |
Len H |
W.T. t |
Len H1 |
| 1/2 | 21.3 | 25 | 4.57 | 25 |
| 3/4 | 26.7 | 25 | 3.81 | 25 |
| 1 | 33.4 | 38 | 4.57 | 38 |
| 1¼ | 42.2 | 38 | 4.83 | 38 |
| 1½ | 48.3 | 38 | 5.08 | 38 |
| 2 | 60.3 | 38 | 5.59 | 44 |
| 2½ | 73 | 38 | 7.11 | 51 |
| 3 | 88.9 | 51 | 7.62 | 64 |
| 3½ | 101.6 | 64 | 8.13 | 76 |
| 4 | 114.3 | 64 | 8.64 | 76 |
| 5 | 141.3 | 76 | 9.65 | 89 |
| 6 | 168.3 | 89 | 10.92 | 102 |
| 8 | 219.1 | 102 | 12.7 | 127 |
| 10 | 273 | 127 | 12.7 | 152 |
| 12 | 323.8 | 152 | 12.7 | 178 |
| 14 | 355.6 | 165 | 12.7 | 191 |
| 16 | 406.4 | 178 | 12.7 | 203 |
| NPS | O.D. D |
Len H |
W.T. t |
Len H1 |
| 18 | 457 | 203 | 12.7 | 229 |
| 20 | 508 | 229 | 12.7 | 254 |
| 22 | 559 | 254 | 12.7 | 254 |
| 24 | 610 | 267 | 12.7 | 305 |
| 26 | 660 | 267 | ... | ... |
| 28 | 711 | 267 | ... | ... |
| 30 | 762 | 267 | ... | ... |
| 32 | 813 | 267 | ... | ... |
| 34 | 864 | 237 | ... | ... |
| 36 | 914 | 267 | ... | ... |
| 38 | 965 | 305 | ... | ... |
| 40 | 1016 | 305 | ... | ... |
| 42 | 1067 | 305 | ... | ... |
| 44 | 1118 | 343 | ... | ... |
| 46 | 1168 | 343 | ... | ... |
| 48 | 1219 | 343 | ... | ... |
