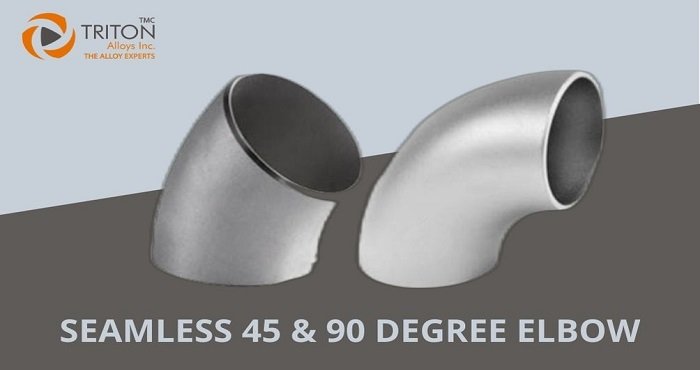

ButtWeld 90° Elbow, Stainless Steel Buttweld 45 Degree Elbow, Buttweld 90°Elbows Leading Manufacturers, Butt Weld 90 Deg Stockholders, ANSI B16.9 Buttweld 45 Elbow, Stainless Steel Buttweld 90° Elbow Supplier in Mumbai, India.
We believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows are always our main priority. We are known as specialist in ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows,70% of our customers are associated with us for their regular requirements of Seamless 45 & 90 Degree, Chinese suppliers also procures ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows from us bcz. We have the specialization & 35 years of experience to manufacture ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows.
Triton Alloys Inc. is Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows & other pipe fittings. our ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Seamless Buttwelding 45° and 90° Elbows. When you place an order with Triton Alloys Inc., you will receive the products that will stand up in service from people that will stand behind their product.
Specification :
| Type | Butt weld (BW) |
| Standards | ASME / ANSI – B 16.9 |
| ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ | |
| API 590-605 | |
| ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’ | |
| ASME B16.25 – ‘Buttwelding Ends’ | |
| ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ | |
| MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ | |
| Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Schedule | Sch 5 TO Sch XXS. |
| Size | 1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”) |
| Stainless Steel | ASTM A 403 WP - TP 304, H, L, 316, 309, 310, 317L, 321, 347, 904L |
| Duplex Steel | 2205, 31803, 32750, 32760, 2101, 2304 |
| Carbon Steel | ASTM A 234 WPB, A-420 WPL6. |
| Alloy Steel | ASTM A 234 WP - P5, P9, P11, P12, P21, P22 & P91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel , Inconel , Alloy 20 etc. |
| Test Certificate | MTC, IBR TC, Lab.TC from Govt. App. Lab. with Third Party Inspection. |
| Specialize | * Long Bend with Radius R=3D, 5D, 10D etc. |
Buttweld Seamless Buttwelding 45 deg and 90 deg Elbows Dimensions:
| Nominal Pip Size (NPS) | DN | Outside Diameter at Bevel | Center- to-End | ||
|---|---|---|---|---|---|
| 45º Elbow B | 90º Elbow A | ||||
| Long Radius | Long Radius | Short Radius | |||
| 1/2 | 21.3 | 16 | 38 | ||
| 3/4 | 26.7 | 19 | 38 | ||
| 1 | 25 | 33.4 | 22 | 38 | 25 |
| 1-1/4 | 32 | 42.2 | 25 | 48 | 32 |
| 1-1/2 | 40 | 48.3 | 28 | 57 | 38 |
| 2 | 50 | 60.3 | 35 | 76 | 51 |
| 2-1/2 | 65 | 73.0 | 45 | 95 | 64 |
| 3 | 80 | 88.9 | 51 | 114 | 76 |
| 3-1/2 | 90 | 101.6 | 57 | 133 | 89 |
| 4 | 100 | 114.3 | 64 | 152 | 102 |
| 5 | 125 | 141.3 | 79 | 191 | 127 |
| 6 | 150 | 168.3 | 95 | 229 | 152 |
| 8 | 200 | 219.1 | 127 | 305 | 203 |
| 10 | 250 | 273.0 | 159 | 381 | 254 |
| 12 | 300 | 323.8 | 191 | 457 | 305 |
| 14 | 350 | 355.6 | 222 | 533 | 356 |
| 16 | 400 | 406.4 | 254 | 610 | 406 |
| 18 | 450 | 457 | 286 | 686 | 457 |
| 20 | 500 | 508 | 318 | 762 | 508 |
| 22 | 550 | 559 | 343 | 838 | 559 |
| 24 | 600 | 610 | 381 | 914 | 610 |
ASME B16.9 BUTTWELD 90 DEGREE ELBOW AVAILABLE TYPES
| SS 90 Deg. Elbows | Steel Pipe Elbow |
| Copper Nickel 90 Deg Elbow | 90° Short Radius Elbow |
| ASME B16.9 90 deg Long Radius Elbow | Schedule 10 90 Degree Elbow |
| Stainless Steel 90 Degree Pipe Elbow Suppliers | Buttweld Elbow 90 Degree |
| ANSI B16.9 90 Degree Buttweld Elbow Dealer | Titanium 90 Degree Elbow |
| Welded 90 Deg Elbow Stockholder | Seamless 90° Pipe Elbow Distributors |
| Carbon Steel 90deg.Elbow | High Quality 90° Elbow Manufacturer |
| ASTM A403 Stainless Steel 90 Deg Elbows | Duplex Steel 90° Pipe Elbow |
| Inconel Butt weld 90 Deg Pipe Elbow | Butt Weld Long Radius 90 Degree Elbows |
| High Nickel Alloy 90° Elbow | Hastelloy 90° Pipe Elbow Stockist |
| ASME B16.28 Buttweld 90 Degree Elbow Exporter | Super Duplex Steel 90 Deg Elbow |
Types of ASME B16.9 Buttweld Fittings
ASME B16.9SS 90° Long Radius Elbow
ASME B16.9 SS 90° Short Radius
ASME B16.9 SS 45° Long Radius Elbow
ASME B16.9 SS 45° Short Radius Elbow
ASME B16.9 SS 180° Long Radius Elbow
ASME B16.9 SS 180° Short Radius Elbow
ASME B16.9 SS 1D Elbow
ASME B16.9 SS 1.5D Elbow
ASME B16.9 SS 3D Elbow
ASME B16.9 SS Seamless Buttwelding 180° Returns
ASME B16.9 SS Pipe Nipples
ASME B16.9 SS Lateral
Buttweld 90 Deg. Elbow Application
ASME B16.9 90 Degree Elbow are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld 90 Degree Elbow through a worldwide network of stock-keeping branches. These 90Deg. Buttweld Elbow is use in various industries like :
- 90° Elbow uses in Paper & Pulp Companies
- Stainless Steel 90° Buttweld Elbow uses in Oil and Gas Industry
- 90° Buttweld Pipe Elbow uses in Chemical Refinery
- Alloy Steel 90° Elbow uses in Pipeline
- Buttweld 90 Degree Pipe Elbow uses in High Temperature Application
- 90 Degree Buttweld Elbow uses in Water Pipe Line
- ANSI B16.9 Buttweld 90° Pipe Elbow can be used in Nuclear power plants
- 90° Degree Elbow usefule for High Pressure Applications
- Buttweld 90° Long Radius Elbow uses in Fabrication and welding Job
- 90° Buttweld Elbow uses in Food Processing and Dairy Industries
- Buttweld 90° Short Radius Elbow uses in boiler & heatexchangers
