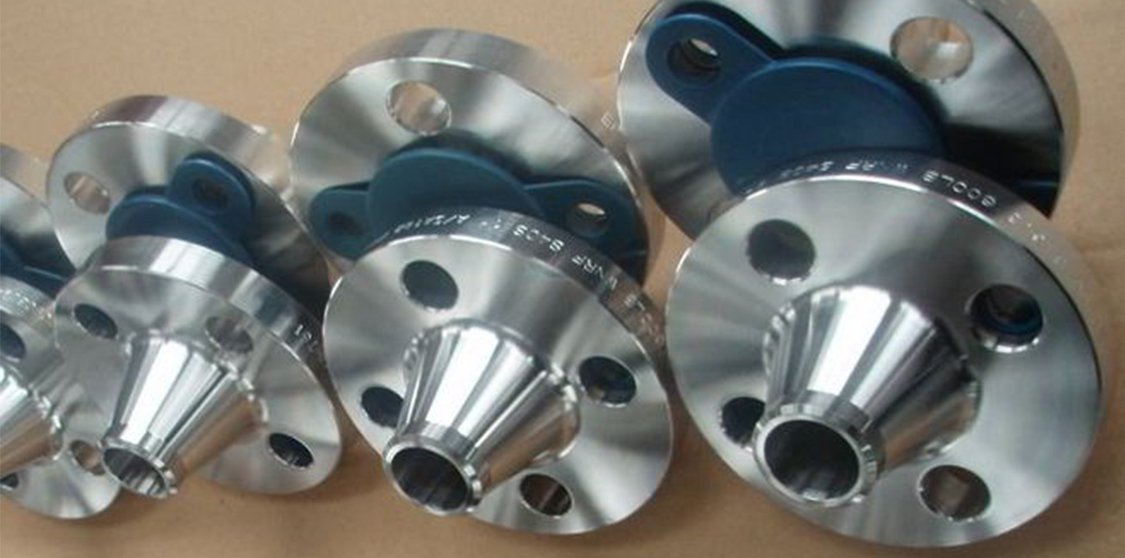

We are Manufacturers, Supplier and Exporters of Hastelloy C276 Flanges. We offer various types of Hastelloy C276 flanges that are provided in ANSI, DIN, JIS, BS and ASME standards.
We offer a comprehensive range of Hastelloy Flanges including Slip on flanges, socket weld, blind, lapped, screwed, weld neck, reducing, spectacle, slip on boss, plate, plate blank, screwed boss, etc. These Hastelloy flanges are available in following sizes and specifications
Triton Alloys Inc is one of the largest exporter, manufacturer and supplier of Hastelloy C276 B564 Flanges in India. These are used for quite a lot of applications such as in desulfurization of flue gas apparatus and chemical process apparatus. It as well has excellent machinability, even though the alloy work toughens as is factual of the nickel base alloys on the whole.A major benefit of these UNS N10276 Flanges is that it by and large does not need solution heat conduct after welding.
Specification :
| Flange Size | 1/2" (15 NB) to 48" (1200NB) |
| ASME B16.5 Flange Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASME B16.5 Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME Flange Standards | ANSI/ASME B16.5 |
| Special design | As per your drawing |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Flange Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc | |
| Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
Hastelloy C276 Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Hastelloy C276 Flanges Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Hastelloy C276 Flanges Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Types of Flanges Available
Blind Flanges
Slip on Flanges
Socket Weld Flanges
Threaded Flanges
Weld Neck Flange
Lap Joint Flange
Expander Flange
Nippo Flanges
Reducing
Ring Type Joint Flanges
High Hub Flange
Square Flange
Flanges Applications Industries
ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Flanges Degree Forged through a worldwide network of stock-keeping branches. Socket Weld Forged is use in various industries like :
- Flanges uses in Paper & Pulp Companies
- Stainless Steel Flanges uses in Oil and Gas Industry
- Flanges Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbowuses in Pipeline
- Flanges Socket Weld Pipe Forged uses in High Temperature Application
- Flanges uses in Water Pipe Line
- ANSI B16.9 Flanges Pipe Forged can be used in Nuclear power plants
- Flanges usefule for High Pressure Applications
- Flanges Long Radius Forged uses in Fabrication and welding Job
- Flanges uses in Food Processing and Dairy Industries
- Flanges Short Radius Forged uses in boiler & heatexchangers
Marking & Packing
Our Nickel Alloy 2.4066 round bars are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Nickel Alloy UNS N02200 bar are marked with Grade, Lot No, Size and our trade mark. We can also make custom marking on our products on Special request from Purchaser.
Quality Assurance
Triton Alloys Inc all Nickel Alloy 200 round bars, Nickel Alloy 200 bright bars and Nickel 200 hex bars are subject to strict inspection at each stage starting from material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, DIN, EN, and JIS codes and standards. We can also appoint official certified Inspection Agencies upon request of our clients so that they can witness the material reports, dimensions and quality conformity of products.
