We are one of the leading importer, stockholder, suppliers & exporters dealing in Socket weld pipe cap since 1990. When procuring raw materials to manufacture Socket weld pipe cap, our primary responsibility is to ensure that same quality and consistency exists in our supply base.
Socket weld pipe capis a type of pipe fitting is defined as a part used in a piping system, Welding a fitting to the pipe means it is permanently leakproof. We are a largest pipe fitting manufacturer for all type of industries in India & shipping worldwide. We can manufacture all 3 groups of Fittings such as Buttweld (BW) fittings Socket Weld (SW) fittings Threaded (THD) fittings as per ASME B16.11 standards & other International standards. Specialized in 45 degree elbow, Socket Weld, 180 degree elbow, concentric reducer, eccentric reducer, straight tee, equal tee, reducing tee, Y tee, cross, lap joint stub end, pipe cap, blind flange, slip-on neck flange, butt-welding neck flange, flat flange. Triton Alloys Inc & Engg. Industries continues to meet customers’ needs through global quality standards from original design to distribution. Triton Alloys Inc & Engg. Industries manufactures to global standards.
Specification :
| Type | Forged Fittings |
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Pressure Class | 150 LBS, 300 LBS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Stainless Steel | ASTM A 182 F -.304, 304L, 304Ti, 316, 309, 310, 317L, 321, 347, 904L. |
| Duplex Steel | 2205 (F60), 31803 (F51), 32750, 32760. |
| Carbon Steel | ASTM A-105, A-350 LF2. |
| Alloy Steel | ASTM A 182- F5, F9, F11, F12, F21, F22 & F91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel, Inconel, Alloy 20 etc. |
| Test Certificate | MTC, Govt. App. Lab. |
| Specialize | IBR Fitting, Swage Nipple |

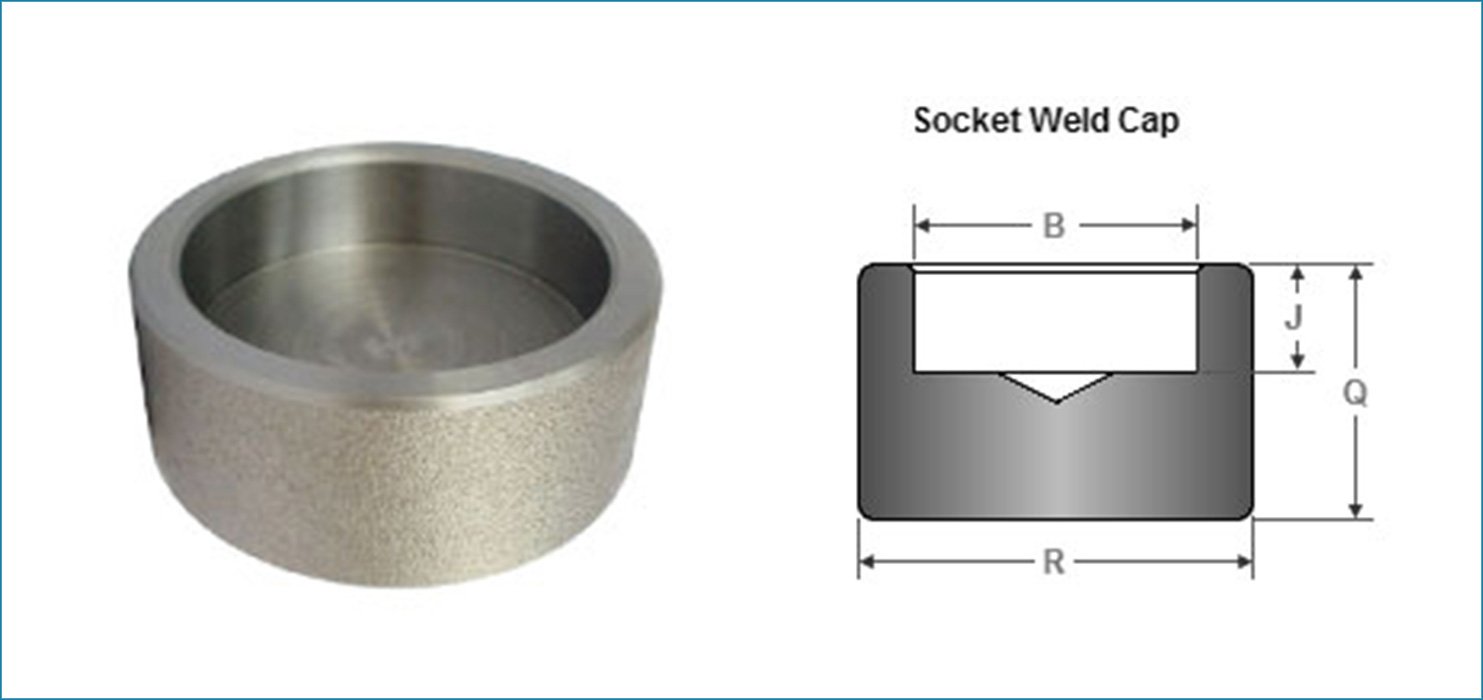

Dimensions :Socket Weld caps - NPS 1/2 to 4 - 3000 LBS - ASME B16.11
| NPS | Socket Bore | Depth Socket | Length Cap | Diameter Cap |
|---|---|---|---|---|
| B | J | Q | R | |
| 1/2 | 21.95 21.70 | 10 | 19 | 32 |
| 3/4 | 27.30 27.05 | 13 | 23 | 38 |
| 1 | 34.05 33.80 | 13 | 26 | 45 |
| 1¼ | 42.80 42.55 | 13 | 28 | 55 |
| 1½ | 48.90 48.65 | 13 | 30 | 65 |
| 2 | 61.35 61.10 | 16 | 36 | 75 |
| 2½ | 74.20 73.80 | 16 | 38 | 92 |
| 3 | 90.15 89.80 | 16 | 42 | 110 |
| 4 | 115.80 115.45 | 19 | 48 | 140 |
Dimensions Socket Weld caps - NPS 1/2 to 2 - 6000 LBS - ASME B16.11
| NPS | Socket Bore | Depth Socket | Length Cap | Diameter Cap |
|---|---|---|---|---|
| B | J | Q | R | |
| 1/2 | 21.95 21.70 | 10 | 22 | 34 |
| 3/4 | 27.30 27.05 | 13 | 26 | 41 |
| 1 | 34.05 33.80 | 13 | 28 | 50 |
| 1¼ | 42.80 42.55 | 13 | 30 | 58 |
| 1½ | 48.90 48.65 | 13 | 32 | 66.5 |
| 2 | 61.35 61.10 | 16 | 38 | 85 |
Available Forged Steel Socket Weld End Cap Types
| Forged Socket weld Pipe Cap | 6000LB Socket weld Pipe Cap |
| 150 lb. Socket Weld Fittings Pipe Cap | 9000LB Socket weld Forged Cap |
| SS Forged Socket weld Pipe Cap | Forged Pipe Caps 3000LB Socket Weld |
| Stainless Steel Pipe Cap Suppliers | ASME B16.11 Forged Socket weld Pipe Cap |
| ANSI B16.11 Forged Socket weld Pipe Cap | BS 3799 Forged Socket Weld Pipe Caps |
| Carbon Steel Socket weld Pipe Cap | Duplex Steel Socket weld Pipe Cap |
| ASTM A182 Socket weld Stainless Steel Pipe Cap | High Quality Socket weld Pipe Cap Manufacturer |
| Super Duplex Steel End Pipe Caps | Copper Nickel Socket weld Pipe Cap |
| High Nickel Alloy Forged Socket weld Pipe Cap | Hastelloy Socket weld Pipe Cap |
| Titanium Forged Socket weld Pipe Cap | Inconel Socket weld Pipe Caps |
Types of Socket Weld Fittings
Socket Weld Elbow
Socket Weld Tee
Socket Weld Cross
Socket Weld Reducer
Socket Weld Coupling
Socket Weld Union
Socket Weld Cap
Socket Weld Nipple
Socket Weld Insert
Socket Weld Boss
Socket Weld Outlet
Socket Weld Adapter
Socket Weld Application Industry
ASME B16.9 Socket Weld are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Socket Weld through a worldwide network of stock-keeping branches. These 90Deg. Buttweld Elbow is use in various industries like :
- Socket Weld uses in Paper & Pulp Companies
- Stainless Steel Socket Weld uses in Oil and Gas Industry
- Socket Weld Pipe Elbow uses in Chemical Refinery
- Alloy Steel Socket Weld uses in Pipeline
- Socket Weld Pipe Elbow uses in High Temperature Application
- Socket Weld uses in Water Pipe Line
- ANSI B16.9 Socket Weld can be used in Nuclear power plants
- Socket Weld usefule for High Pressure Applications
- Socket Weld uses in Fabrication and welding Job
- Socket Weld uses in Food Processing and Dairy Industries
- Socket Weld uses in boiler & heatexchangers
