Hot Finish EN 10210 s355 SHS Seamless Pipes, Hot Finish s355 CS SHS Tube, s355 Hot Finish Rectangular Hollow Section Welded Tube, s355 Hot Finish SHS.
The S335 steel is used to make hollow sections which are different in shape, such as square, rectangle and circular.
The S335 Steel square is a square-shaped hollow tube. The steel coverings of the parts of this hollow section fall within the standard specifications of EN 10025 – 2004. Its width ranges from 2 to 30 mm, and its length ranges from 6 to 12 m. The section has a minimum yield strength of 50,000 Ksi. Although, the corrosion resistance is not so good. The blending and machining are relatively good. These square hollow parts have the following uses: Bridge Elements, Equipment Parts for Power Plants, Mining, Wind tower components, offshore equipment and equipment for handling loads.
The S335 Rectangle is a rectangle-shaped hollow tube which can be formed through the cold and hot rolled process. These hollow parts have the benefit of being more rigid in twisting than round hollow sections, which are weaker in bending. Rectangular hollow sections are often used in both mechanical and structural applications. These rectangular sections provide ease of construction by connecting easily and joining with other metals. These hollow sections are utilised in various industries such as power plants, construction, pulp and paper, marine, manufacturing and offshore industries.
Circular hollow sections were the earliest type of hollow section of the grade S335. They are commonly used in several structural, mechanical, and construction-related fields. Good mechanical qualities, good strength, and good weldability are all present. These hollow section pipes and tubes are used in many industries like mining, construction of bridges, power plants etc. The few benefits and characteristics of hollow circular sections are their good blending and yield strength. Numerous businesses employ round tubes. Industries use a cold-forming sheet to create these hollow section pipes at room temperature.
Specification :
| Standard | BS EN 10210 |
| Size | 20*20mm-400*400mm |
| Wall Thickness | 0.5mm - 25mm |
| Length | 6000-14000 mm |
| Type | Seamless/ Welded / ERW |
| Dimensional Tolerances | Thickness : (All sizes +/- 10%) |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Available Grades | S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355J2+N, IS 4923 / ASTM A500 / As Per Requirement |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
Equivalent Grade of S355 Hollow Section
| EU | US |
| S355 | A572Gr50 |
Chemical Composition of S335 Hollow Section
| EU Grade | C% | Mn% | P% | S% | Si% |
| S355 | 0.23 max | 1.60 max | 0.05 max | 0.05 max | 0.05 max |
Mechanical Composition of S335 Hollow Section
| Structural Steel Grade at 16mm | Minimum Yield Strength at nominal thickness 16mm | |
| psi | N/mm2 (MPa) | |
| S355 | 50 000 | 355 N/mm2 |
Types of Hollow Section Available

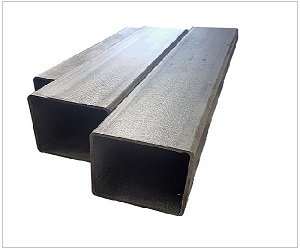

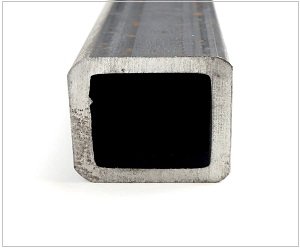

Hot Finish s355 Seamless Square Hollow Section
EN 10210 s355 CS Cold Formed Rectangular Hollow Section

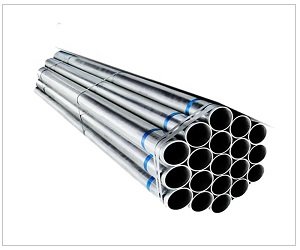

Cold Formed s355 Circular Seamless Pipes
Dimensions of S355 Square Hollow Section
HxB – Height x Base
Wt – Wall thickness
Kg/m – Kilos per linear metre
Er – External radius
L – Standard bar length
| Size mm | kg/m | Size mm | kg/m |
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
Dimensions of S355 Rectangular Hollow Section
HxB – Height x Base
Wt – Wall thickness
Kg/m – Kilos per linear metre
Er – External radius
L – Standard bar length
| Size mm | kg/m | Size mm | kg/m |
| 40 x 20 x 2.0 | 1.68 | 40 x 20 x 2.5 | 2.03 |
| 40 x 20 x 3.0 | 2.36 | 40 x 25 x 1.5 | 1.44 |
| 40 x 25 x 2.0 | 1.89 | 40 x 25 x 2.5 | 2.23 |
| 50 x 25 x 2.0 | 2.21 | 50 x 25 x 2.5 | 2.72 |
| 50 x 25 x 3.0 | 3.22 | 50 x 30 x 2.5 | 2.92 |
| 50 x 30 x 3.0 | 3.45 | 50 x 30 x 4.0 | 4.46 |
| 50 x 40 x 3.0 | 3.77 | 60 x 40 x 2.0 | 2.93 |
| 60 x 40 x 2.5 | 3.71 | 60 x 40 x 3.0 | 4.39 |
| 60 x 40 x 4.0 | 5.72 | 70 x 50 x 2 | 3.56 |
| 70 x 50 x 2.5 | 4.39 | 70 x 50 x 3.0 | 5.19 |
| 70 x 50 x 4.0 | 6.71 | 80 x 40 x 2.5 | 4.26 |
| 80 x 40 x 3.0 | 5.34 | 80 x 40 x 4.0 | 6.97 |
| 80 x 40 x 5.0 | 8.54 | 80 x 50 x 3.0 | 5.66 |
| 80 x 50 x 4.0 | 7.34 | 90 x 50 x 3.0 | 6.28 |
| 90 x 50 x 3.6 | 7.46 | 90 x 50 x 5.0 | 10.11 |
| 100 x 50 x 2.5 | 5.63 | 100 x 50 x 3.0 | 6.75 |
| 100 x 50 x 4.0 | 8.86 | 100 x 50 x 5.0 | 10.90 |
| 100 x 60 x 3.0 | 7.22 | 100 x 60 x 3.6 | 8.59 |
| 100 x 60 x 5.0 | 11.70 | 120 x 80 x 2.5 | 7.65 |
| 120 x 80 x 3.0 | 9.03 | 120 x 80 x 4.0 | 12.00 |
| 120 x 80 x 5.0 | 14.80 | 120 x 80 x 6.0 | 17.60 |
| 120 x 80 x 8.0 | 22.9 | 150 x 100 x 5.0 | 18.70 |
| 150 x 100 x 6.0 | 22.30 | 150 x 100 x 8.0 | 29.10 |
| 150 x 100 x 10.0 | 35.70 | 160 x 80 x 5.0 | 18.00 |
| 160 x 80 x 6.0 | 21.30 | 160 x 80 x 8.0 | 27.90 |
| 200 x 100 x 5.0 | 22.70 | 200 x 100 x 6.0 | 27.00 |
| 200 x 100 x 8.0 | 35.4 | 200 x 100 x 10.0 | 43.60 |
| 250 x 150 x 5.0 | 30.5 | 250 x 150 x 6.0 | 38.2 |
| 250 x 150 x 8.0 | 48.0 | 250 x 150 x 10 | 59.3 |
| 300 x 200 x 6.0 | 48.10 | 300 x 200 x 8.0 | 60.50 |
| 300 x 200 x 10.0 | 75.00 | 400 x 200 x 8.0 | 73.10 |
| 400 x 200 x 10.0 | 90.70 | 400 x 200 x 16 | 142.00 |

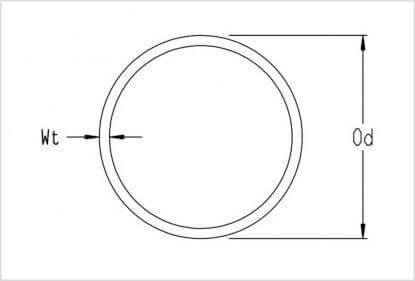

Dimensions of S355 Circular Hollow Section
Od – Outside diameter
Wt – Wall thickness
Kg/m – Kilos per linear metre
L – Standard bar length
| Nominal Bore | Outside diameter | Thickness | Weight |
| mm | mm | mm | kg/m |
| 15 | 21.3 | 2.00 | 0.95 |
| 2.60 | 1.21 | ||
| 3.20 | 1.44 | ||
| 20 | 26.9 | 2.30 | 1.38 |
| 2.60 | 1.56 | ||
| 3.20 | 1.87 | ||
| 25 | 33.7 | 2.60 | 1.98 |
| 3.20 | 0.24 | ||
| 4.00 | 2.93 | ||
| 32 | 42.4 | 2.60 | 2.54 |
| 3.20 | 3.01 | ||
| 4.00 | 3.79 | ||
| 40 | 48.3 | 2.90 | 3.23 |
| 3.20 | 3.56 | ||
| 4.00 | 4.37 | ||
| 50 | 60.3 | 2.90 | 4.08 |
| 3.60 | 5.03 | ||
| 5.00 | 6.19 | ||
| 65 | 76.1 | 3.20 | 5.71 |
| 3.60 | 6.42 | ||
| 4.50 | 7.93 | ||
| 80 | 88.9 | 3.20 | 6.72 |
| 4.00 | 8.36 | ||
| 4.80 | 9.90 | ||
| 100 | 114.3 | 3.60 | 9.75 |
| 4.50 | 12.20 | ||
| 5.40 | 14.50 | ||
| 125 | 139.7 | 4.50 | 15.00 |
| 4.80 | 15.90 | ||
| 5.40 | 17.90 | ||
| 150 | 165.1 | 4.50 | 17.80 |
| 4.80 | 18.90 | ||
| 5.40 | 21.30 | ||
| 150 | 168.3 | 5.00 | 20.1 |
| 6.3 | 25.2 | ||
| 8.00 | 31.6 | ||
| 10.00 | 39 | ||
| 12.5 | 48 | ||
| 200 | 219.1 | 4.80 | 25.38 |
| 6.00 | 31.51 | ||
| 8.00 | 41.67 | ||
| 10.00 | 51.59 | ||
| 250 | 273 | 6.00 | 39.51 |
| 8.00 | 52.30 | ||
| 10.00 | 64.59 | ||
| 300 | 323.9 | 6.30 | 49.36 |
| 8.00 | 62.35 | ||
| 10.00 | 77.44 |
Available Hollow Section
Hot Finish S355 Seamless Square Hollow Section
S355 MS Hot Finish Square Section
s355 ERW SHS Tubing
S355 Hot Finish Rectangular Hollow Section
S355 Cold Formed RHS
Cold Formed S355 Seamless Rectangular Hollow Section
EN 10210 S355J2H Circular Hollow Section
EN 10210 S355J2H Circular Hollow Section
EN 10210 S355J2H Circular Hollow Section
Price List of S335 Piping
| Carbon Steel S335 Pipe manufacturer US / Metric Ton (FOB Price) on request |
BS EN 10210 S335 Carbon Steel Pipes US / Metric Ton (FOB Price) on request |
| EN 10210 S335 Carbon Steel Structural Pipe US / Metric Ton (FOB Price on request |
S335 Seamless Pipe US / Metric Ton (FOB Price) on request |
| S335 Cold Drawn Welded Pipes US / Ton (FOB Price) on request |
S335 Steel Electric Resistance Welded Pipe US / Ton (FOB Price) on request |
| S335 Carbon Steel Square Pipe US / Ton (FOB Price) on request |
S335 Carbon Steel Rectangular Pipes US / Ton (FOB Price) on request |
| S335 Carbon Steel Round Pipes US / Ton (FOB Price) on request |
S335 Hot Finished ERW Welded Pipes US / Ton (FOB Price) on request |
Pipes & Tubes Applications Industries
S335 Steel Welded Pipes are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Carbon Steel Pipe through a worldwide network of stock-keeping branches. Carbon Steel Pipe is use in various industries like :
- Pipes & Tubes uses in Paper & Pulp Companies
- Pipes & Tubes uses in Oil and Gas Industry
- Pipe Forged uses in Chemical Refinery
- Buttweld Pipe Forged uses in High Temperature Application
- Pipes & Tubes uses in Water Pipe Line
- Pipe Forged can be used in Nuclear power plants
- Pipes & Tubes usefule for High Pressure Applications
- Pipes & Tubes Long Radius Forged uses in Fabrication and welding Job
- Pipes & Tubes uses in Food Processing and Dairy Industries
- Pipes & Tubes Short Radius Forged uses in boiler & heatexchangers
Marking & Packing
Our EN 10210 S355 Pipes are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All S335 Carbon Steel Pipe are marked with Grade, Lot No, Size and our trade mark. We can also make custom marking on our products on Special request from Purchaser.
Quality Assurance
Triton Alloys Inc all S335 Steel Pipe, S335 Steel Welded Pipes and S335 Steel Seamless Pipes are subject to strict inspection at each stage starting from material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, DIN, EN, and JIS codes and standards. We can also appoint official certified Inspection Agencies upon request of our clients so that they can witness the material reports, dimensions and quality conformity of products.
