Triton Alloys Inc is one of eminent manufacturers and supplyers of high grade Threaded Cap. Dhananjay Metal overseas offers a commendable range of Threaded Cap,for the prestigious client with competitive price.Export packaging is grade towords the protection,handlying and transport of Threaded Cap by air or sea freight,as such shares many characterstics with export and transport Threaded Cap packing.Backed by a diligent tean of professional,we are engaged in offering an excellent quality range of Threaded Cap.
With our vast industrial experience we are engaged to offer a high quality range of Plastic Threaded Cap that is widely acknowledged for high resilience and optimum strength. We offer wide range of Plastic Threaded Cap to our valuable clients at industry leading prices. As per the demand of our customers we are offering this range in different sizes.
Specification :
| Type | Forged Fittings |
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Pressure Class | 150 LBS, 300 LBS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Stainless Steel | ASTM A 182 F -.304, 304L, 304Ti, 316, 309, 310, 317L, 321, 347, 904L. |
| Duplex Steel | 2205 (F60), 31803 (F51), 32750, 32760. |
| Carbon Steel | ASTM A-105, A-350 LF2. |
| Alloy Steel | ASTM A 182- F5, F9, F11, F12, F21, F22 & F91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel, Inconel, Alloy 20 etc. |
| Test Certificate | MTC, Govt. App. Lab. |
| Specialize | IBR Fitting, Swage Nipple |

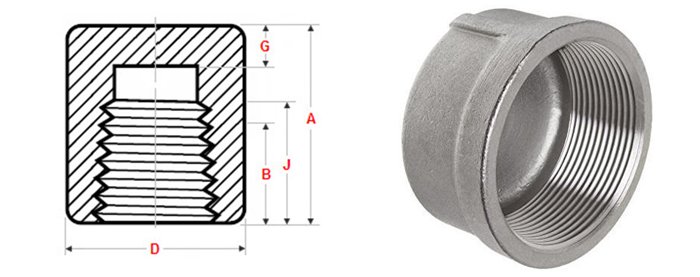

ASME B16.11 Forged Threaded Pipe Cap Dimensions
Dimensions of Class 3000 NPS 1/2 to 4
| NPS | End to End | Outside Diameter | Minimum End Wall Thickness | Min Length of Thread | |
|---|---|---|---|---|---|
| A | D | G | B | J | |
| 1/2 | 32 | 28 | 6.4 | 10.9 | 13.6 |
| 3/4 | 37 | 35. | 6.4 | 12.7 | 13.9 |
| 1 | 41 | 44 | 9.7 | 14.7 | 17.3 |
| 1.1/4 | 44 | 57 | 9.7 | 17 | 18 |
| 1.1/2 | 44 | 64 | 11.2 | 17.8 | 18.4 |
| 2 | 48 | 76 | 12.7 | 19 | 19.2 |
| 2.1/2 | 60 | 92 | 15.7 | 23.6 | 28.9 |
| 3 | 65 | 108 | 19 | 25.9 | 30.5 |
| 4 | 68 | 140 | 22.4 | 27.7 | 33 |
Dimensions of Class 6000 NPS 1/2 to 4
| NPS | End to End | Outside Diameter | Minimum End Wall Thickness | Min Length of Thread | |
|---|---|---|---|---|---|
| A | D | G | B | J | |
| 1/2 | 33 | 38 | 7.9 | 10.9 | 13.6 |
| 3/4 | 38 | 44 | 7.9 | 12.7 | 13.9 |
| 1 | 43 | 57 | 11.2 | 14.7 | 17.3 |
| 1.1/4 | 46 | 64 | 11.2 | 17 | 18 |
| 1.1/2 | 48 | 76 | 12.7 | 17.8 | 18.4 |
| 2 | 51 | 92 | 15.7 | 19 | 19.2 |
| 2.1/2 | 64 | 108 | 19 | 23.6 | 28.9 |
| 3 | 68 | 127 | 22.4 | 25.9 | 30.5 |
| 4 | 75 | 159 | 28.4 | 27.7 | 33 |
In Stock ASME B16.11 Threaded Pipe Cap Types
| Threaded Pipe Cap Fittings | Stainless Threaded End Cap |
| 2000LBS Threaded Pipe Cap Fittings | 6000LBS Forged Pipe End Cap |
| ASME B16.11 Forged Threaded End Cap | SS Forged End Cap 3000LBS |
| Asme B16.11 Pipe End Cap Threaded – Class 3000 | Stainless Steel Threaded Pipe Cap Fittings |
| ANSI B16.11 Forged Threaded Pipe Cap | BS 3799 Forged Screwed Pipe Cap |
| Carbon Steel Threaded Pipe Cap Supplier | High Quality Threaded Pipe Cap Manufacturer |
| ASTM A182 Threaded Pipe Cap | Duplex Steel Threaded Pipe Cap |
| Super Duplex Steel Screwed Pipe Cap | Copper Nickel Threaded Pipe Cap |
| High Nickel Alloy Threaded Pipe Cap | Hastelloy Screwed Pipe Cap Fittings |
| Titanium Forged Threaded Pipe Cap | Inconel Threaded Forged Pipe Cap |
Types of Threaded Forged Fittings
Threaded Elbow
Threaded Tee
Threaded Cross
Threaded Plug
Threaded Coupling
Threaded Union
Threaded Cap
Threaded Nipple
Threaded Head Bushing
Threaded Boss
Threaded Outlet
Threaded Adapter
Threaded Forged Applications Industries
ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :
- Threaded Forged uses in Paper & Pulp Companies
- Stainless Steel Threaded Forged uses in Oil and Gas Industry
- Threaded Forged Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbowuses in Pipeline
- Buttweld Threaded Forged Pipe Forged uses in High Temperature Application
- Threaded Forged uses in Water Pipe Line
- ANSI B16.9 Threaded Forged Pipe Forged can be used in Nuclear power plants
- Threaded Forged usefule for High Pressure Applications
- Threaded Forged Long Radius Forged uses in Fabrication and welding Job
- Threaded Forged uses in Food Processing and Dairy Industries
- Threaded Forged Short Radius Forged uses in boiler & heatexchangers
