Triton Alloys Inc is one of the prominent manufacturer, exporter and supplier of forged threaded pipe fittings manufactured in accordance to ASME B16.11. Forged threaded pipe fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L) and ASTM A105. We are constantly adding to our diverse product range in order to better serve our valued customers.
We at Triton Alloys Inc believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ASME B16.11 / BS3799 Threaded Hex Head Bushing are always our main priority. We are known as specialist in ASME B16.11 / BS3799 Threaded Hex Head Bushing,70% of our customers are associated with us for their regular requirements of ASME B16.11 / BS3799 Threaded Hex Head Bushing, Chinese suppliers also procures ASME B16.11 / BS3799 Threaded Hex Head Bushing from us bcz. We have the specialization & 35 years of experience to manufacture ASME B16.11 / BS3799 Threaded Hex Head Bushing.
Specification :
| Type | Forged Fittings |
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Pressure Class | 150 LBS, 300 LBS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Stainless Steel | ASTM A 182 F -.304, 304L, 304Ti, 316, 309, 310, 317L, 321, 347, 904L. |
| Duplex Steel | 2205 (F60), 31803 (F51), 32750, 32760. |
| Carbon Steel | ASTM A-105, A-350 LF2. |
| Alloy Steel | ASTM A 182- F5, F9, F11, F12, F21, F22 & F91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel, Inconel, Alloy 20 etc. |
| Test Certificate | MTC, Govt. App. Lab. |
| Specialize | IBR Fitting, Swage Nipple |

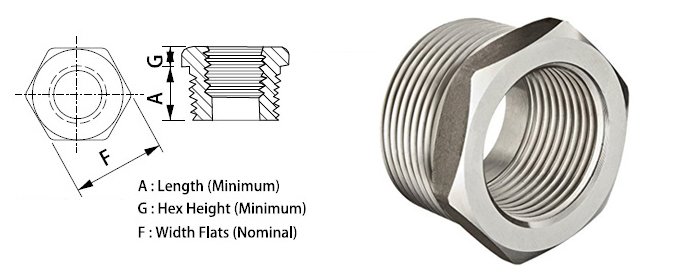

ASME B16.11 Forged Threaded Bushing Dimensions
| DIMENSIONS OF THREADED BUSHING (BS 3799) (In mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Size |
Length (Minimim) A |
|||||||
| Hex Plugs & Bushings | ||||||||
| Width Flats (Nominal) F |
Hex Height (Min.) | |||||||
| Bushing G |
Plug H |
|||||||
| 1/8” | 9.7 | 11.2 | – | 6.4 | ||||
| 1/4” | 11.2 | 15.7 | 3.0 | 6.4 | ||||
| 3/8” | 12.7 | 17.5 | 4.1 | 7.9 | ||||
| 1/2” | 14.2 | 22.4 | 4.8 | 7.9 | ||||
| 3/4” | 15.7 | 26.9 | 5.6 | 9.7 | ||||
| 1” | 19.1 | 35.1 | 6.4 | 9.7 | ||||
| 1-1/4” | 20.6 | 44.5 | 7.1 | 14.2 | ||||
| 1-1/2” | 20.6 | 50.8 | 7.9 | 15.7 | ||||
| 2” | 22.4 | 63.5 | 8.6 | 17.5 | ||||
| 2-2/2” | 26.9 | 76.2 | 9.7 | 19.1 | ||||
| 3” | 28.4 | 88.9 | 10.4 | 20.6 | ||||
| 4” | 31.8 | 117.3 | 12.7 | 25.4 | ||||
Threaded Hex Head Bushing Dimensions:
ASME B16.11 Threaded Bushing Size Chart
| NPS | Minimum Length E |
Minimum Hex Height C |
Nominal F |
|---|---|---|---|
| 1/2 | 14 | 5 | 22 |
| 3/4 | 16 | 6 | 27 |
| 1 | 19 | 6 | 35 |
| 1.1/4 | 21 | 7 | 44.5 |
| 1.1/2 | 21 | 8 | 51 |
| 2 | 22 | 9 | 63.5 |
| 2.1/2 | 27 | 10 | 76 |
| 3 | 28 | 10 | 89 |
| 4 | 32 | 13 | 117.5 |
In Stock ASME B16.11 Threaded Bushing Types
| ASME B16.11 Threaded Bushing | Threaded Reducing Bushing |
| 2000LBS Double Threaded Bushing | 6000LBS Threaded Female Bushing |
| Reducing Bushings Threaded Fittings | Threaded Flange Bushing |
| ASME B16.11 Threaded Hex Bushing | Threaded Hex Head Bushing |
| ANSI B16.11 Double Threaded Hex Bushing | BS 3799 Steel Threaded Hexagon Bushing |
| Npt Threaded Reducer Hex Bushing | ASME B16.11 Male Threaded Bushing |
| 3000LBS Threaded Pipe Bushing | 9000LBS Forged Steel Hex Bushing |
| Carbon Steel Threaded Hex Bushing Supplier | High Quality Threaded Bushing Manufacturer |
| ASTM A182 Forged Steel Reducing Bushing | Duplex Steel Forged Double Tapped Bushing |
| Super Duplex Steel Screwed Bushing | Copper Nickel Threaded Hex Head Bushing |
| High Nickel Alloy Threaded Bushing | Hastelloy Screwed Bushing Fittings |
| Titanium Forged Threaded Hex Head Bushing | Inconel Threaded Forged Reducing Bushing |
Types of Threaded Forged Fittings
Threaded Elbow
Threaded Tee
Threaded Cross
Threaded Plug
Threaded Coupling
Threaded Union
Threaded Cap
Threaded Nipple
Threaded Head Bushing
Threaded Boss
Threaded Outlet
Threaded Adapter
Threaded Forged Applications Industries
ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :
- Threaded Forged uses in Paper & Pulp Companies
- Stainless Steel Threaded Forged uses in Oil and Gas Industry
- Threaded Forged Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbowuses in Pipeline
- Buttweld Threaded Forged Pipe Forged uses in High Temperature Application
- Threaded Forged uses in Water Pipe Line
- ANSI B16.9 Threaded Forged Pipe Forged can be used in Nuclear power plants
- Threaded Forged usefule for High Pressure Applications
- Threaded Forged Long Radius Forged uses in Fabrication and welding Job
- Threaded Forged uses in Food Processing and Dairy Industries
- Threaded Forged Short Radius Forged uses in boiler & heatexchangers
