We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) Fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.11 Threaded Tee to Kuwait, Egypt and Qatar.
Triton Alloys Inc is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.11 Threaded Tee standards in Elbows, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Threaded (THD) Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
Specification :
| Type | Forged Fittings |
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Pressure Class | 150 LBS, 300 LBS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Stainless Steel | ASTM A 182 F -.304, 304L, 304Ti, 316, 309, 310, 317L, 321, 347, 904L. |
| Duplex Steel | 2205 (F60), 31803 (F51), 32750, 32760. |
| Carbon Steel | ASTM A-105, A-350 LF2. |
| Alloy Steel | ASTM A 182- F5, F9, F11, F12, F21, F22 & F91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel, Inconel, Alloy 20 etc. |
| Test Certificate | MTC, Govt. App. Lab. |
| Specialize | IBR Fitting, Swage Nipple |

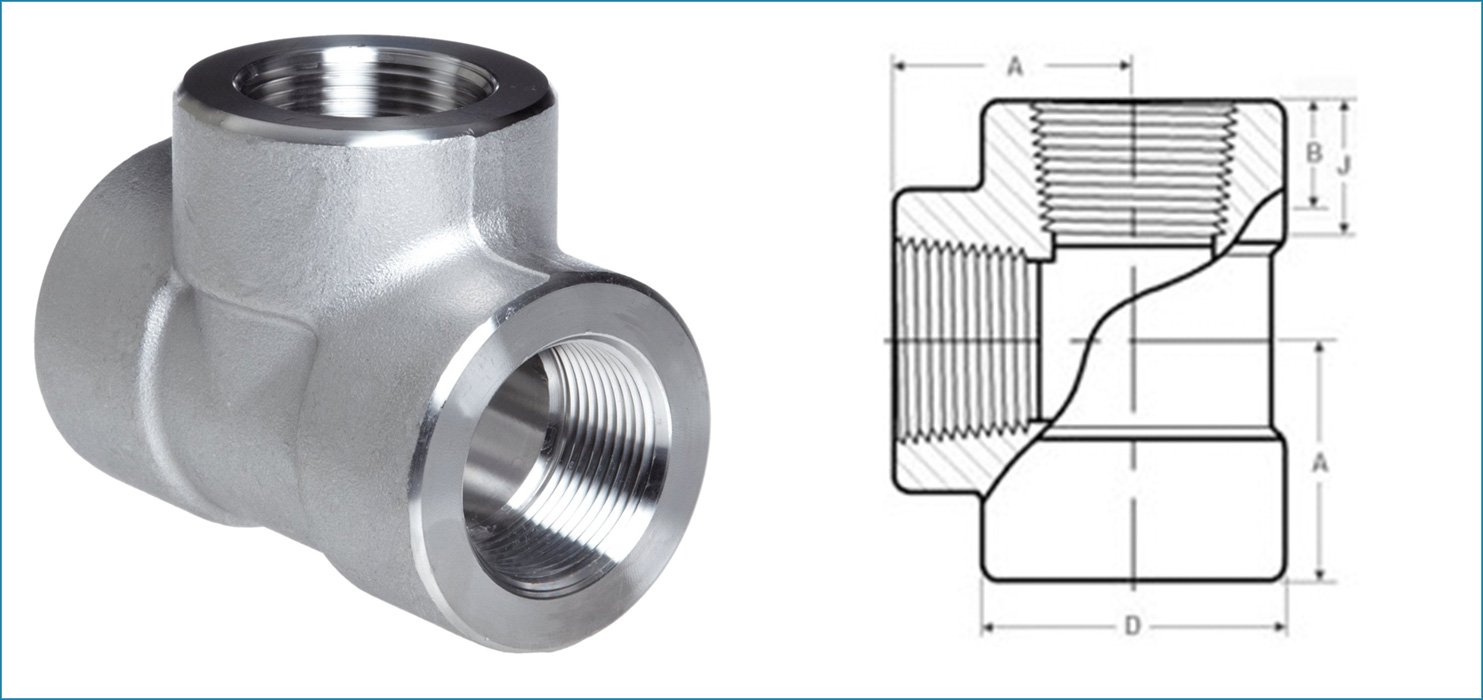

Dimensions NPS 1/2 to 4 Class 2000:
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
| 1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Dimensions NPS 1/2 to 4 Class 3000:
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1.1/4 | 17 | 18 | 62 | 51 | 5.28 |
| 1.1/2 | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2.1/2 | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dimensions NPS 1/2 to 4 Class 6000:
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
| 1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
Available Forged Threaded Tee Types
| Forged Threaded Tee | Threaded Straight Tee |
| 2000LBS Screwed Equal Tee | 6000LBS Threaded Equal Tee |
| SS Forged Threaded Equal Tees | Forged Tee 3000LB Threaded |
| Stainless Steel Screwed Equal Tee Suppliers | ASME B16.11 Forged Threaded Tee |
| ANSI B16.11 Forged Threaded Tee | BS 3799 Forged Screwed Equal Tee |
| Forged Threaded Male Tee | Threaded Male Tee Fittings |
| Galvanized Threaded Tee | Grooved Threaded Tee |
| Carbon Steel Threaded Equal Tee | High Quality Threaded Tee Manufacturer |
| ASTM A182 Threaded Stainless Tee | Duplex Steel Threaded Equal Tee |
| Super Duplex Steel Screwed Equal Tee | Copper Nickel Threaded Equal Tee |
| High Nickel Alloy Threaded Tee | Hastelloy Forged Screwed Tee |
| Titanium Forged Threaded Tee | Inconel Threaded Equal Tee |
Types of Threaded Forged Fittings
Threaded Elbow
Threaded Tee
Threaded Cross
Threaded Plug
Threaded Coupling
Threaded Union
Threaded Cap
Threaded Nipple
Threaded Head Bushing
Threaded Boss
Threaded Outlet
Threaded Adapter
Threaded Forged Applications Industries
ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :
- Threaded Forged uses in Paper & Pulp Companies
- Stainless Steel Threaded Forged uses in Oil and Gas Industry
- Threaded Forged Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbowuses in Pipeline
- Buttweld Threaded Forged Pipe Forged uses in High Temperature Application
- Threaded Forged uses in Water Pipe Line
- ANSI B16.9 Threaded Forged Pipe Forged can be used in Nuclear power plants
- Threaded Forged usefule for High Pressure Applications
- Threaded Forged Long Radius Forged uses in Fabrication and welding Job
- Threaded Forged uses in Food Processing and Dairy Industries
- Threaded Forged Short Radius Forged uses in boiler & heatexchangers
